SRALON® Woven Fabric

SRALON® aramid fabrics are widely acclaimed for its superior functions like heat-resistant, anti-cutting and anti-stabbing.

SRALON® para-aramid fabrics are woven by variety of SRALON® para-aramid filaments. Plain, drill and satin weaving are available for different functions like heat-resistant, anti-cutting and anti-stabbing which can be widely used in aerospace, ballistic protection, construction reinforcement and sports equipment.

Get A Free Quote

Products Categories

Meta Aramid

Para Aramid

Carbon Fiber

Honeycomb

Get A Free Quote

SRALON® Woven Fabric Data Sheet

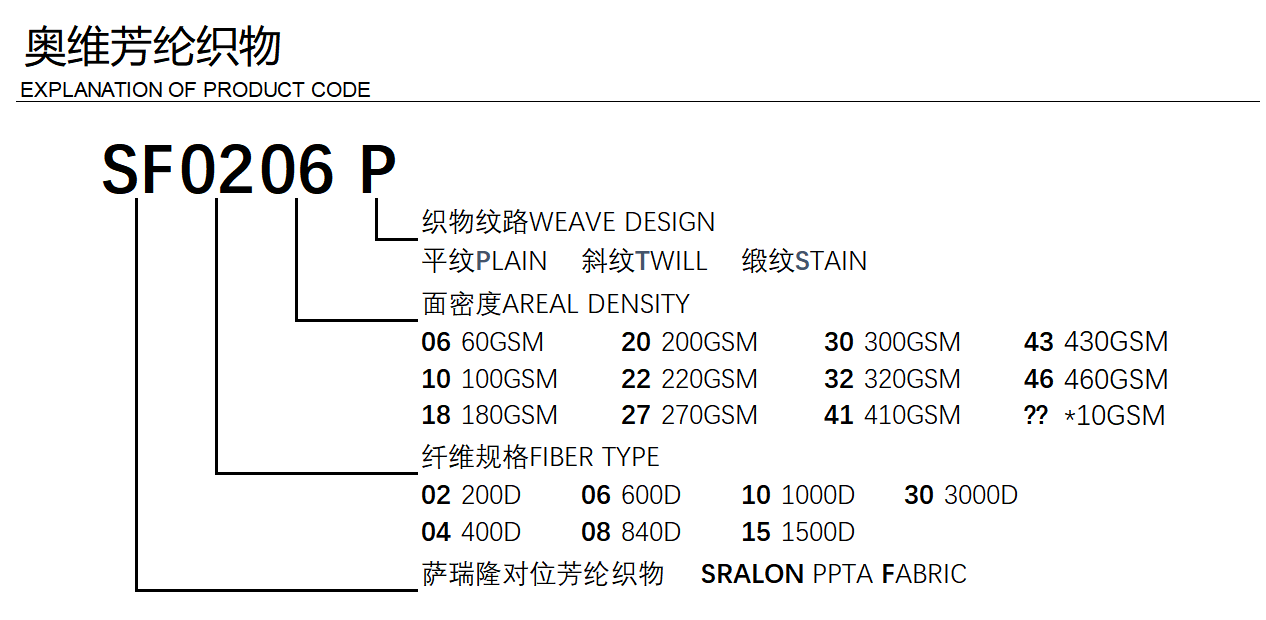

Model	Denier	Warp*Weft	Areal Wt.	Tickness	Width	Warp	Weft	Length
SF0206P	200D	13.5*13.5	60	0.08	500-2000	≥1.6	≥1.8	100
SF0408P	400D	12.0*12.0	80	0.11	500-2000	≥2.0	≥2.2	100
SF0412P	400D	13.5*13.5	122	0.14	500-2000	≥2.6	≥2.7	100
SF0610P	600D	8.0*8.0	100	0.15	500-2000	≥2.5	≥2.6	100
SF0816P	840D	8.5*8.5	160	0.25	500-2000	≥3.6	≥3.8	100
SF0820P	840D	10.5*10.5	200	0.30	500-2000	≥4.0	≥4.2	100
SF1014P	1000D	6.0*6.0	140	0.22	500-2000	≥3.5	≥3.6	100
SF1016P	1000D	7.0*7.0	160	0.24	500-2000	≥3.5	≥3.7	100
SF1020P	1000D	9.0*9.0	200	0.26	500-2000	≥3.8	≥4.0	100
SF1025P	1000D	11.5*11.5	255	0.31	500-2000	≥4.8	≥5.2	100
SF1027P	1000D	12.2*12.2	270	0.34	500-2000	≥5.0	≥5.3	100
SF1517P	1500D	5.0*5.0	170	0.23	500-2000	≥3.3	≥3.5	100
SF1520P	1500D	6.0*6.0	200	0.26	500-2000	≥3.8	≥4.2	100
SF1541P	1500D	12.7*12.7	410	0.62	500-2000	≥7.7	≥8.2	100
SF1546P	1500D	6.5*6.5	460	0.68	500-2000	≥8.2	≥8.5	100
SF3030P	3000D	4.5*4.5	300	0.53	500-2000	≥5.2	≥5.5	100
SF3041P	3000D	6.2*6.2	410	0.62	500-2000	≥7.5	≥8.0	100
SF3043P	3000D	6.5*6.5	430	0.65	500-2000	≥7.6	≥8.1	100
SF3046P	3000D	6.7*6.7	460	0.70	500-2000	≥8.2	≥8.5	100
SF3063T	3000D	9.2*9.2	635	1.05	500-2000	≥11.0	≥11.5	100
