SRALON® Staple Fiber
Para aramid staple fibers for spun yarn and non-woven fabrics.
SRALON® Para-aramid filaments provides extremely high strength and modulus with light weight, also shows excellent flame and abrasion resistance.

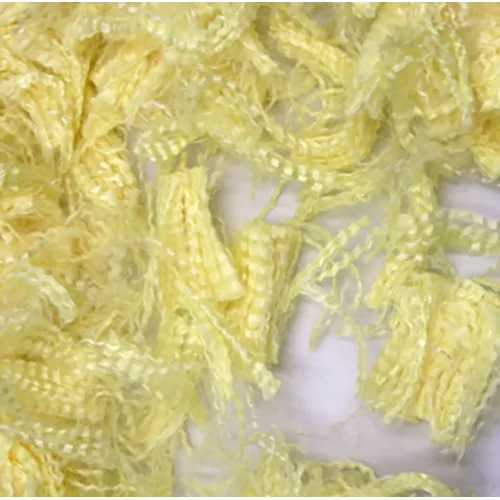

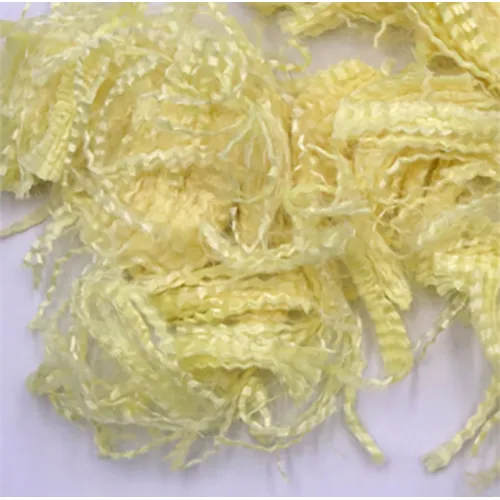

SRALON® para-aramid staple fibers are made from filaments, which are washed, crimped and cut and then treated by surface treatment. With those unique properties both in chemical and physical, SRALON® staple fiber can perfectly meet all needs from fabric and yarn manufactures to produce protective workwear and variety of other personal protective equipment.
SRALON® staple fibers are widely used in textile application including high-end yarn, blended yarn, needle-spun felt and non-woven industry. Its essential but multiple linear density and fiber length provide more possibility for softness and comfort.
SRALON® Staple Fiber Data Sheet
| Performance Index of PSA Staple Fiber for Non – Woven Fabric | |||||||
| Project | Unit | 1.5D – 3D (1.67dtex – 3.33dtex) | 3D – 6D (3.33dtex – 6.67dtex) | ||||
| Superior Quality | First – class Quality | Qualified Product | Superior Quality | First – class Quality | Qualified Product | ||
| Yarn Density Deviation Rate | % | ±6.0 | ±10.0 | ±15.0 | ±8.0 | ±12.0 | ±20.0 |
| Breaking Force | cN/dtex | ≥3.2 | ≥3.0 | ≥2.8 | ≥2.6 | ≥2.4 | ≥2.2 |
| Elongation | % | ≥22.0 | ≥20.0 | ≥22.0 | ≥20.0 | ||
| Curl Number | ea/inch | M1±3.0 | M1±5.0 | M1±3.0 | M1±5.0 | ||
| Curliness | % | M2±4.0 | M2±5.0 | M2±4.0 | M2±5.0 | ||
| Heat Resistance Strength Retention Rate 250°CX60min | % | ≥95.0 | |||||
| Dry Heat Shrinkage Rate 300°CX15min | % | ≤2.0 | |||||
| M1, M2 are determined through negotiation between the supplier and the demander, and cannot be arbitrarily changed | |||||||
| Performance Index of PSA Staple Fiber for Spinning | ||||
| Project | Unit | 1.5D~3D (1.67dtex~3.33dtex) | ||
| Superior Quality | First – class Quality | Qualified Product | ||
| Yarn Density Deviation Rate | % | ±6.0 | ±10.0 | ±15.0 |
| Length Deviation Rate | % | ±3.0 | ±4.0 | ±5.0 |
| Breaking Force | cN/dtex | ≥3.2 | ≥3.0 | ≥2.8 |
| Elongation | % | ≥22.0 | ≥20.0 | |
| Curl Number | ea/inch | M1±3.0 | M1±5.0 | |
| Curliness | % | M2±4.0 | M2±5.0 | |
| Defects | mg/100g | ≤10.0 | ≤15.0 | ≤20.0 |
| Oversized Fiber Ratio | % | ≤0.3 | ≤0.6 | ≤1.0 |
| Double Length Fiber | mg/100g | ≤7.0 | ≤14.0 | ≤20.0 |
| Heat Resistance Strength Retention Rate 250°CX60min | % | ≥95.0 | ||
| Dry Heat Shrinkage Rate 300°CX15min | % | ≤2.0 | ||
| M1, M2 are determined through negotiation between the supplier and the demander, and cannot be arbitrarily changed | ||||
