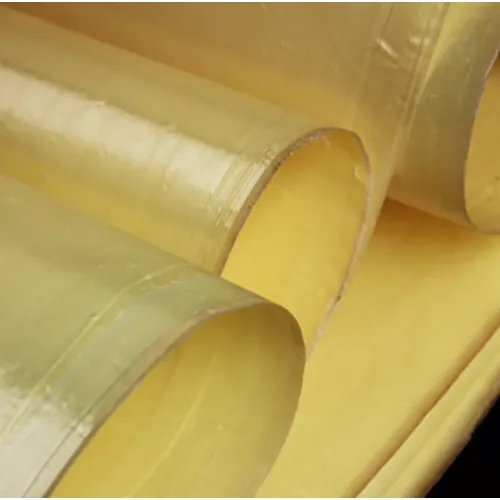

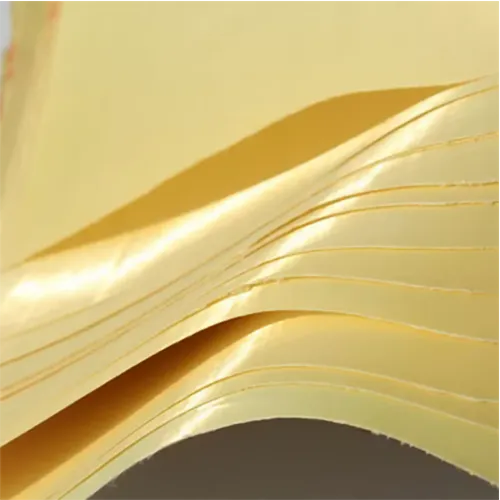

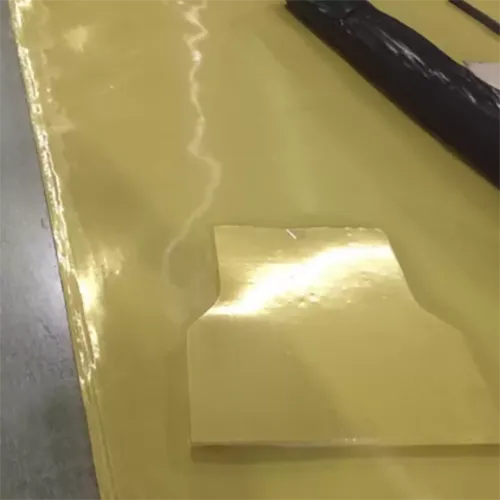

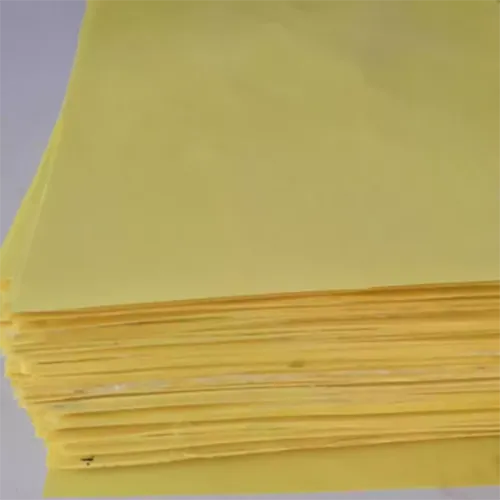

SRALON® Ballistic Unidirectional Laminates

SRALON® Ballistic Unidirectional Laminates are widely recognized for their superior ballistic performance like high impact resistance, stab resistance and cut resistance. SRALON® Ballistic Unidirectional Laminates are made from a diverse range of SRALON® para-aramid filaments, through unidirectional arrangement, resin impregnation and lamination curing. They can be customized to meet different protective requirements and are widely used in aerospace, ballistic protection, structural reinforcement and related high-end fields.

Get A Free Quote

Products Categories

Meta Aramid

Para Aramid

Carbon Fiber

Honeycomb

Get A Free Quote

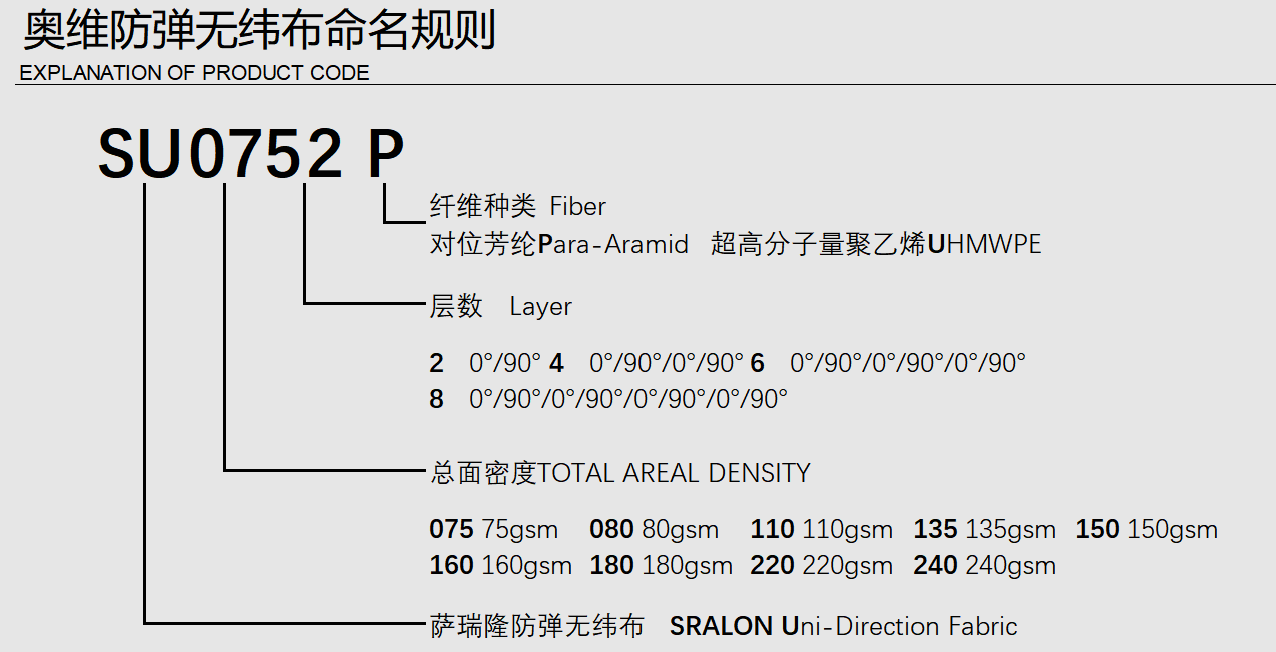

SRALON® Ballistic Unidirectional Laminates Data Sheet

Model	Fiber Type	Total Areal Wt.	Layers	Tickness	Width	Length	Standard	Bullet	Layers
SU0752U	UHMWPE	75±3	2	0.10mm	1.6m	≥100m	NIJ III	7.62mmX51（M80)	235
							GJB 4300 IV	51式7.62钢芯	112
SU0802U	UHMWPE	80±3	2	0.12mm	1.6m	≥100m	NIJ III	7.62mmX51（M80)	240
							GJB 4300 IV	51式7.62钢芯	116
SU1102P	P-Aramid	110±5	2	0.15mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	55
							NIJ IIIA	.44 Magnum SJHP	58
SU1354U	UHMWPE	135±6	4	0.18mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	32
							NIJ IIIA	.44 Magnum SJHP	36
SU1504U	UHMWPE	150±6	4	0.20mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	32
							NIJ IIIA	.44 Magnum SJHP	45
SU1604U	P-Aramid	160±5	4	0.22mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	34
							NIJ IIIA	.44 Magnum SJHP	40
SU2202P	P-Aramid	220±10	2	0.22mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	28
							NIJ IIIA	.44 Magnum SJHP	32
SU2204P	P-Aramid	220±10	4	0.24mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	26
							NIJ IIIA	.44 Magnum SJHP	30
SU2402P	P-Aramid	240±10	2	0.25mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	26
							NIJ IIIA	.44 Magnum SJHP	28
SU2404P	P-Aramid	240±10	4	0.26mm	1.6m	≥100m	NIJ IIIA	9mm Parabellum	25
							NIJ IIIA	.44 Magnum SJHP	28
