Carbon Fiber Fabric

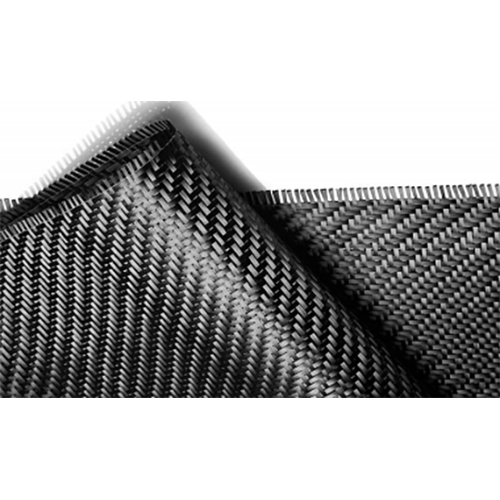

Carbon fiber fabric is a sheet material made by weaving carbon fiber filaments (or carbon fiber tows) through textile processes. It serves as an intermediate form of carbon fiber composites, typically used as a reinforcement material combined with resin or other matrix materials to form high-performance composite products.
ADVANTAGES OF CARBON FIBER FABRIC
- High Strength/Moudulus
- Lightweight
- Corrosion Resistance
- Electrical/Thermal Conductivity
- Design Flexibility
MAIN SPECIFICATIONS OF CARBON FIBER FABRIC
| MODEL | TYPES OF FIBERS | FABRIC STRUCTURE | DENSITY OF WARP&WEFT | WIDTH | THICKNESS | WEIGHT | ||
| WARP | WEFT | WARP | WEFT | |||||
| FC0112P | 1K | 1K | Plain Weave | 9 | 9 | 100-3000 | 0.16 | 120 |
| FC0112T | 1K | 1K | Twill Weave | 9 | 9 | 100-3000 | 0.16 | 120 |
| FC0320P | 3K | 3K | Plain Weave | 5 | 5 | 100-3000 | 0.26 | 200 |
| FC0320T | 3K | 3K | Twill Weave | 5 | 5 | 100-3000 | 0.26 | 200 |
| FC0324P | 3K | 3K | Plain Weave | 6 | 6 | 100-3000 | 0.32 | 240 |
| FC0324T | 3K | 3K | Twill Weave | 6 | 6 | 100-3000 | 0.32 | 240 |
| FC0632P | 6K | 6K | Plain Weave | 4 | 4 | 100-3000 | 0.42 | 320 |
| FC0632T | 6K | 6K | Twill Weave | 4 | 4 | 100-3000 | 0.42 | 320 |
| FC0636P | 6K | 6K | Plain Weave | 4.5 | 4.5 | 100-3000 | 0.48 | 360 |
| FC0636T | 6K | 6K | Twill Weave | 4.5 | 4.5 | 100-3000 | 0.48 | 360 |
| FC1240P | 12K | 12K | Plain Weave | 2.5 | 2.5 | 100-3000 | 0.53 | 400 |
| FC1240T | 12K | 12K | Twill Weave | 2.5 | 2.5 | 100-3000 | 0.53 | 400 |
| FC1248P | 12K | 12K | Plain Weave | 3 | 3 | 100-3000 | 0.64 | 480 |
| FC1248T | 12K | 12K | Twill Weave | 3 | 3 | 100-3000 | 0.64 | 480 |
EXPLANATION OF PRODUCT CODE
FC: It is the abbreviation for FANCAB carbon fiber.
12: Types of fibers.
48: *10 =The weight is 480g/㎡
P/T: P stands for Plain Weave, and T stands for Twill Weave.
