AC-NH Meta-aramid Honeycomb

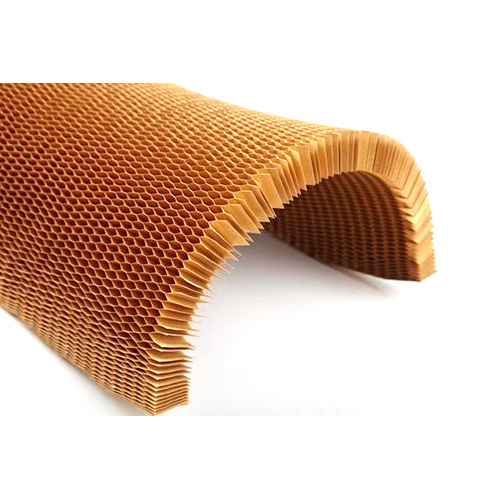

AC-NH meta-aramid honeycomb is crafted from high-performance meta-aramid paper impregnated with thermoset phenolic resin, available in both aviation-grade and industrial-grade options. It has found applications across various domains, including aircraft, aerospace, specialty shelter vehicles, racing boats, racing cars, and radomes.
AC-NH Meta-aramid Honeycomb Description
- Corrosion resistant
- Lightweight
- High strength
- Good formability for curve forming
- Outstanding flame resistance
- Dielectric properties
- Fatigue resistance
AC-NH Meta-aramid Honeycomb Specifications
- Qualified to Q/CRRC J26-2018
- Qualified toGB/T1455
- Qualified toGB/T1453
- Qualified to TB/T3139
- Qualified to EN45545
- Qualified toSJTY-ZT-0
Mechancial Properties
| Commercial Grade | |||||
| Aramicore | Compressive Strength | Plate Shear（MPa） | |||
| Bare | L-Direction | W-Direction | |||
| Strength | Modulus | Strength | Modulus | ||
| mm-Kg/m³ | AVG | AVG | AVG | AVG | AVG |
| AC-NH-1.83-32 | 0.63 | 0.60 | 30.00 | 0.33 | 16.00 |
| AC-NH-1.83-40 | 1.25 | 0.80 | 38.00 | 0.41 | 22.00 |
| AC-NH-1.83-48 | 1.93 | 1.10 | 54.00 | 0.60 | 28.00 |
| AC-NH-1.83-56 | 2.51 | 1.35 | 63.00 | 0.83 | 39.00 |
| AC-NH-1.83-64 | 3.10 | 1.64 | 72.00 | 1.05 | 48.00 |
| AC-NH-1.83-72 | 3.65 | 1.78 | 81.00 | 1.13 | 54.00 |
| AC-NH-1.83-80 | 4.21 | 1.95 | 90.00 | 1.21 | 60.00 |
| AC-NH-1.83-128 | 10.60 | 3.04 | 144.00 | 1.81 | 84.00 |
| AC-NH-1.83-144 | 11.81 | 3.33 | 175.00 | 2.01 | 96.00 |
| AC-NH-2.75-32 | 0.70 | 0.62 | 34.00 | 0.37 | 18.00 |
| AC-NH-2.75-40 | 1.26 | 0.81 | 40.00 | 0.43 | 24.00 |
| AC-NH-2.75-48 | 1.95 | 1.11 | 57.00 | 0.61 | 30.00 |
| AC-NH-2.75-56 | 2.52 | 1.36 | 65.00 | 0.82 | 40.00 |
| AC-NH-2.75-64 | 3.20 | 1.63 | 71.00 | 1.02 | 47.00 |
| AC-NH-2.75-72 | 4.78 | 1.97 | 95.00 | 1.23 | 64.00 |
| AC-NH-2.75-96 | 6.29 | 2.35 | 105.00 | 1.54 | 72.00 |
| AC-NH-3.67-40 | 1.25 | 0.80 | 40.00 | 0.43 | 25.00 |
| AC-NH-4.50-40 | 1.27 | 0.79 | 39.00 | 0.42 | 23.00 |
| AC-NH-5.50-40 | 1.28 | 0.78 | 37.00 | 0.41 | 21.00 |
| AC-NH-5.50-48 | 1.85 | 1.08 | 52.00 | 0.59 | 27.00 |
| AC-NH(OX)-2.75-48 | 1.80 | 0.90 | 48.00 | 0.92 | 45.00 |
| Aerospace Grade | |||||
| Aramicore | Compressive Strength | Plate Shear（MPa） | |||
| Bare | L-Direction | W-Direction | |||
| Strength | Modulus | Strength | Modulus | ||
| mm-Kg/m³ | AVG | AVG | AVG | AVG | AVG |
| AC-NH-A-1.83-32 | 0.65 | 0.62 | 32.00 | 0.34 | 17.00 |
| AC-NH-A-1.83-48 | 2.00 | 1.14 | 58.00 | 0.62 | 30.00 |
| AC-NH-A-1.83-64 | 3.21 | 1.70 | 78.00 | 1.09 | 52.00 |
| AC-NH-A-1.83-80 | 4.36 | 2.02 | 97.00 | 1.26 | 65.00 |
| AC-NH-A-1.83-128 | 10.97 | 3.16 | 156.00 | 1.88 | 91.00 |
| AC-NH-A-1.83-144 | 12.22 | 3.46 | 189.00 | 2.09 | 104.00 |
| AC-NH-A-2.75-32 | 0.72 | 0.64 | 37.00 | 0.38 | 19.00 |
| AC-NH-A-2.75-48 | 2.02 | 1.15 | 62.00 | 0.63 | 32.00 |
| AC-NH-A-2.75-64 | 3.31 | 1.69 | 77.00 | 1.06 | 51.00 |
| AC-NH-A-2.75-96 | 6.51 | 2.44 | 113.00 | 1.60 | 78.00 |
| AC-NH-A-3.67-48 | 1.31 | 0.82 | 42.00 | 0.44 | 25.00 |
| AC-NH-A-5.50-40 | 1.32 | 0.81 | 40.00 | 0.43 | 23.00 |
| AC-NH-A-5.50-48 | 1.91 | 1.12 | 56.00 | 0.61 | 29.00 |
| AC-NH(OX)-A-2.75-48 | 1.86 | 0.93 | 52.00 | 0.95 | 49.00 |
Type description
AC: Aramicore
NH: Meta-aramid Honeycomb OX: Over expanded cells
A: Aerospace grade
1.83: Cell size (mm)
48: Density 48 kg/m³
