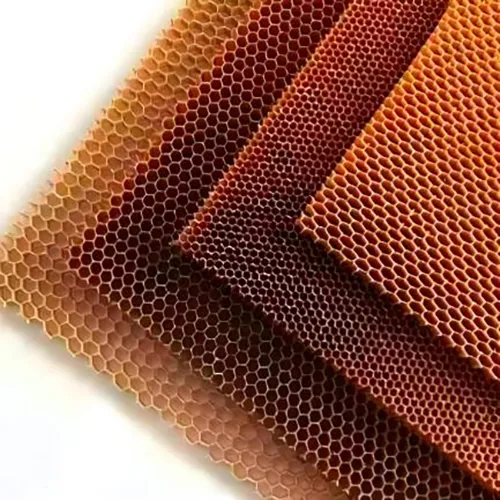

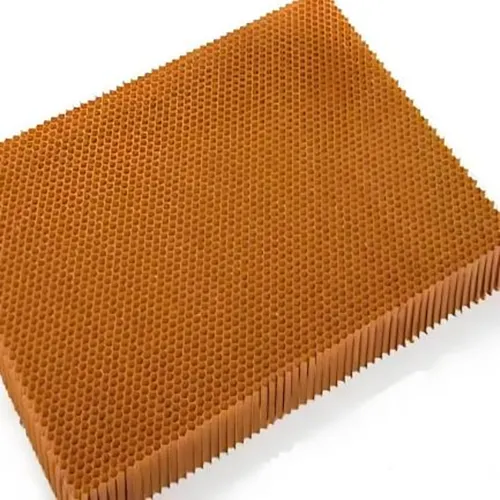

AC-KH Honeycomb
AC-KH is a para-aramid paper honeycomb reinforced with phenolic resin. When compared to AC-NH honeycomb of the same cell size and density, AC-KH para-aramid honeycomb exhibits superior strength. Additionally, it offers remarkable thermal and moisture stability, enhanced shear strength and modulus, rigorous FST (Flammability, Smoke, and Toxicity) compliance,and exceptional high/low temperature performance.
AC-KH Honeycomb Description
- Corrosion resistant
- Lightweight
- High strength

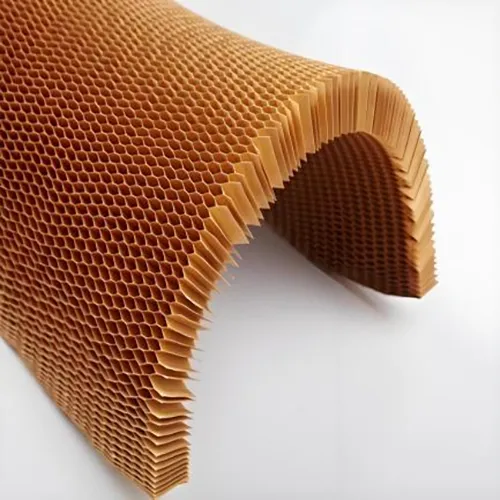

- Good formability for curve forming
- Outstanding flame resistance
- Dielectric properties
- Fatigue resistance
AC-KH Honeycomb Specifications
- Qualified to Q/CRRC J26-2018
- Qualified toGB/T1455
- Qualified toGB/T1453
- Qualified to TB/T3139
- Qualified to EN45545
- Qualified toSJTY-ZT-0
Mechancial Properties
| AC-KH Para-Aramid Honeycomb Technical Date Sheet | |||||
| Aramicore | Compressive Strength （MPa） | Plate Shear（MPa） | |||
| L-Direction | W-Direction | ||||
| Bare | Strength | Modulus | Strength | Modulus | |
| mm-Kg/m³ | AVG | AVG | AVG | AVG | AVG |
| AC-KH-1.83-40 | 1.38 | 1.11 | 85.00 | 0.62 | 39.00 |
| AC-KH-1.83-48 | 2.05 | 1.45 | 124.00 | 0.80 | 55.00 |
| AC-KH-2.75-40 | 1.31 | 1.11 | 92.00 | 0.59 | 34.00 |
| AC-KH-2.75-48 | 2.10 | 1.48 | 121.00 | 0.84 | 64.00 |

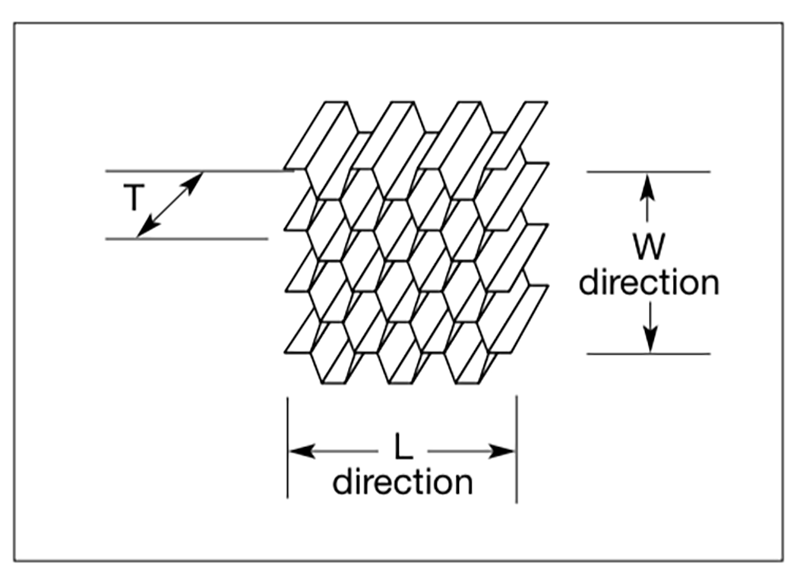

Type description
AC: Aramicore
KH: Para-aramid Honeycomb OX: Over expanded cells
A: Aerospace grade
1.83: cell size (mm)
48: Density 48 kg/m³
